Description

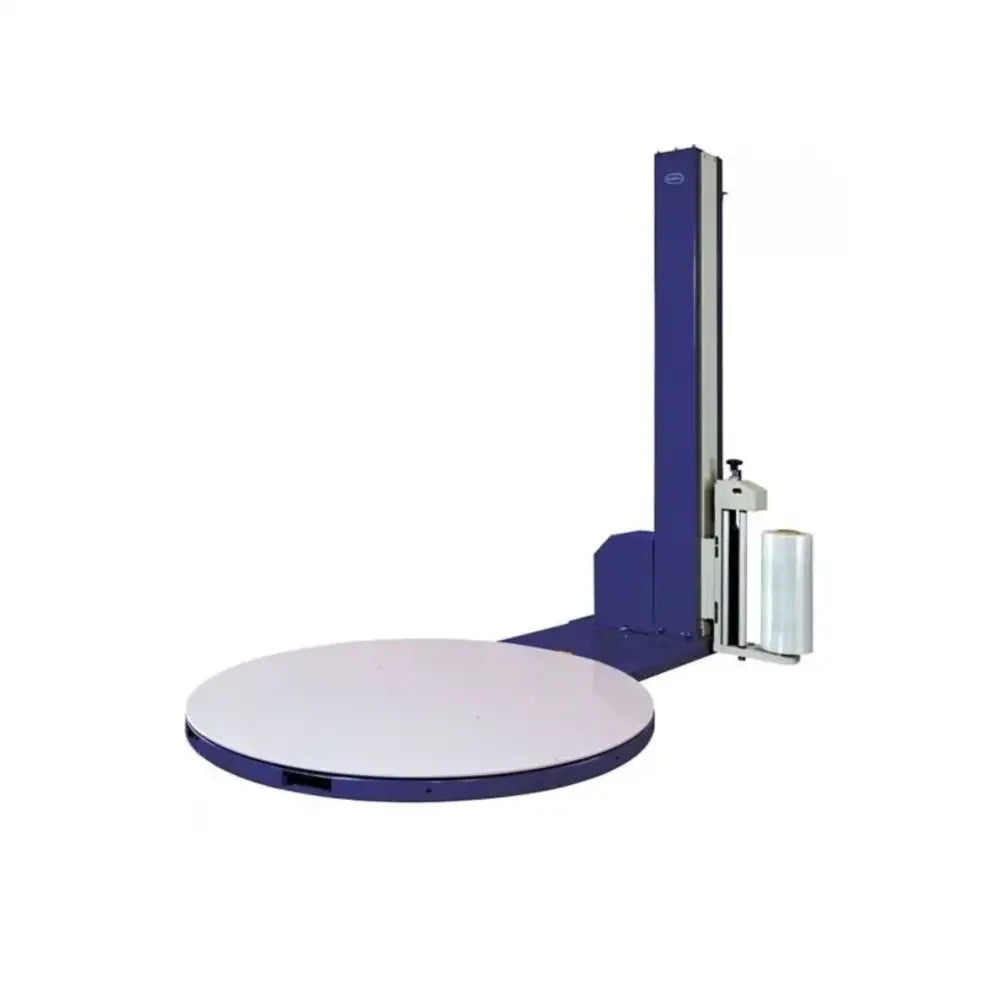

Entry level semi automatic stretch wrapping turntable for palletised loads
- adjustable spring brake activated film stretch mechanism
- single start/stop turntable position and magnetic brake for easy loading/offloading
- choice of 3 x lower wraps + 2 x top wraps and 2 x lower wraps + 1 x top wrap
- soft start and stop functions
- mid-cycle pause function
- optional loading ramp (PSWR) for pallet trucks
- turntable height 75mm
- turntable diameter 1650mm
- maximum loading weight 1650kg
- maximum wrapping width/length 1200 x 1200mm
- maximum wrapping height 2000mm
- maximum turntable speed 10rpm
- power supply 240V 13A
- power consumption 1.2kW
- dimensions (W x D x H) 2465 x 1650 x 2338mm
- weight 368kg
