Description

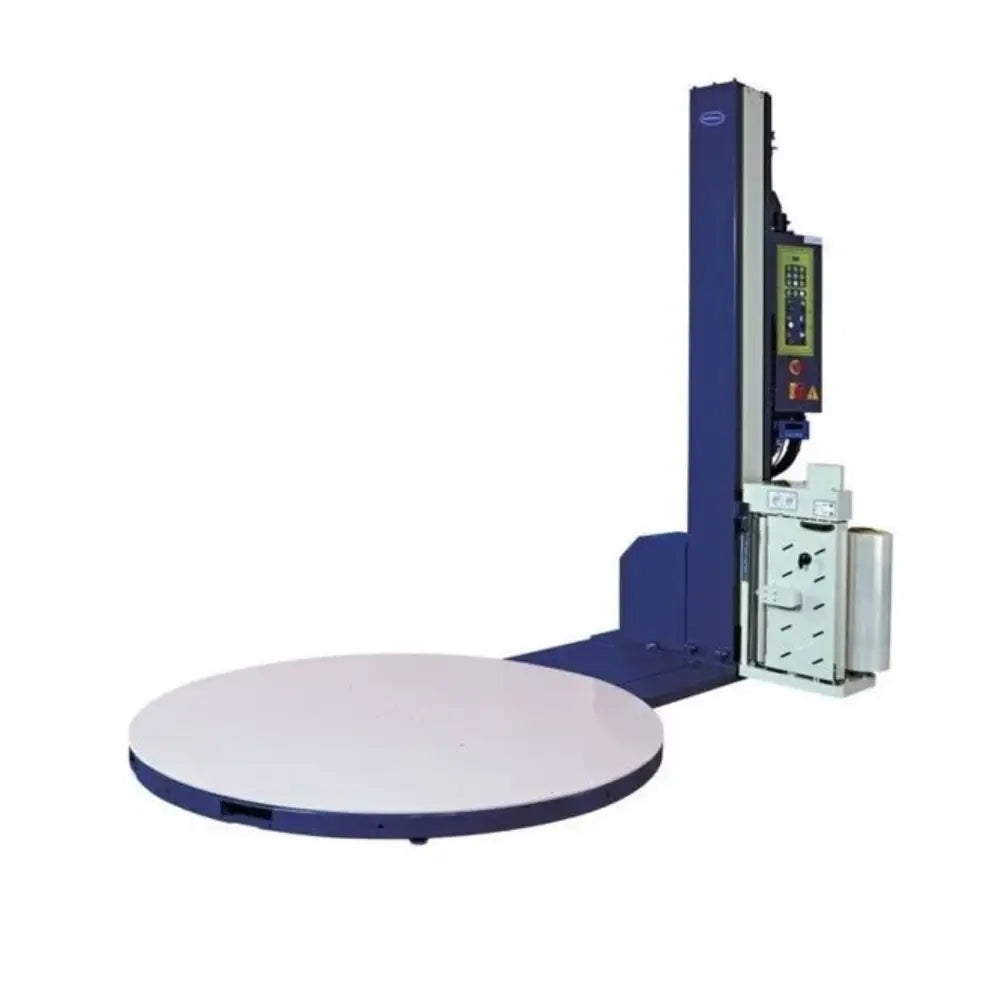

Advanced semi automatic stretch wrapping turntable for palletised loads
- powered pre-stretch extends film length to up to 300% for more secure wrapping and reduced film use
- single start/stop turntable position and magnetic brake for easy loading/offloading
- 180 degree rotating electronic control panel
- fully programmable wrapping configuration
- soft start and stop functions
- advanced soft wrapping regulates the film tension as the pallet rotates to avoid over-tensioning on corners which can cause carton damage
- mid-cycle reinforcement function enables greater strength at required points
- top cover pause function allows insertion of separate top cover before wrapping resumes
- automatic film cut-off
- optional loading ramp (PSWR-2) for pallet trucks
- turntable height 82mm
- turntable diameter 1500mm
- maximum loading weight 1650kg
- maximum wrapping width/length 1050 x 1050mm
- maximum wrapping height 2000mm
- maximum turntable speed 12rpm
- power supply 240V 13A
- power consumption 1.2kW
- dimensions (W x D x H) 2400 x 1500 x 2345mm
- weight 450kg
