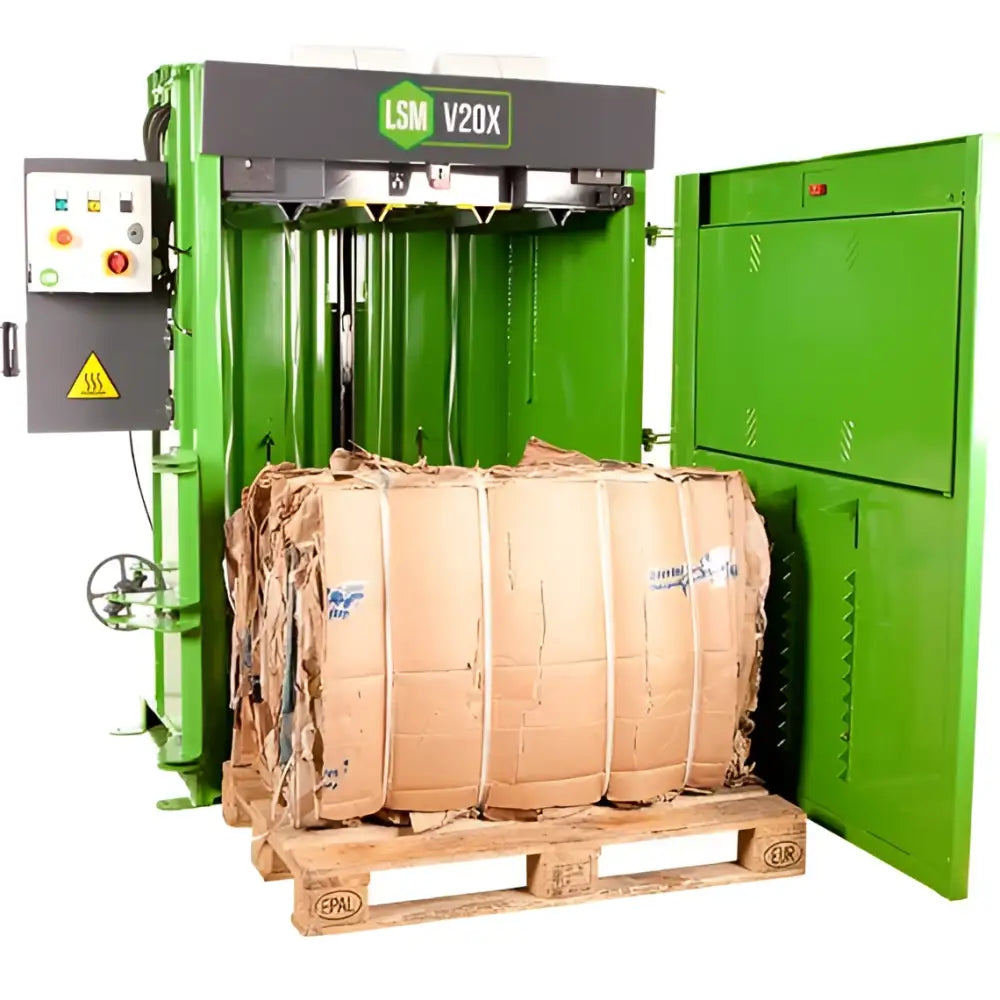

LSM V20 Cross Ram Cardboard And Waste Baler

LSM Large Low Profile Cardboard And Waste Baler

With its cross ram configuration the LSM V20 is ideal when head height may be an issue, without the need for a vertical ram it allows the V2O to be installed in areas that may not have the required height for a vertical ram baler. Even with the absence of the vertical ram we can still achieve up to 25 tonnes of pressure with a bale weight of 300kg and a cycle time of 35 seconds.

Price includes delivery and installation with a lead time of 3-4 weeks

• Bale size: 800mm H (variable) x 1100mm W x 750mm D
• Bale weight: 200–300 kg
• Integrated bale kicker
• 3 Phase 380/400 V 3 kW motor
• EN 16,500 Compliant
• Noise level: 74 dB
• Uses 13mm wide bale strapping
