Description

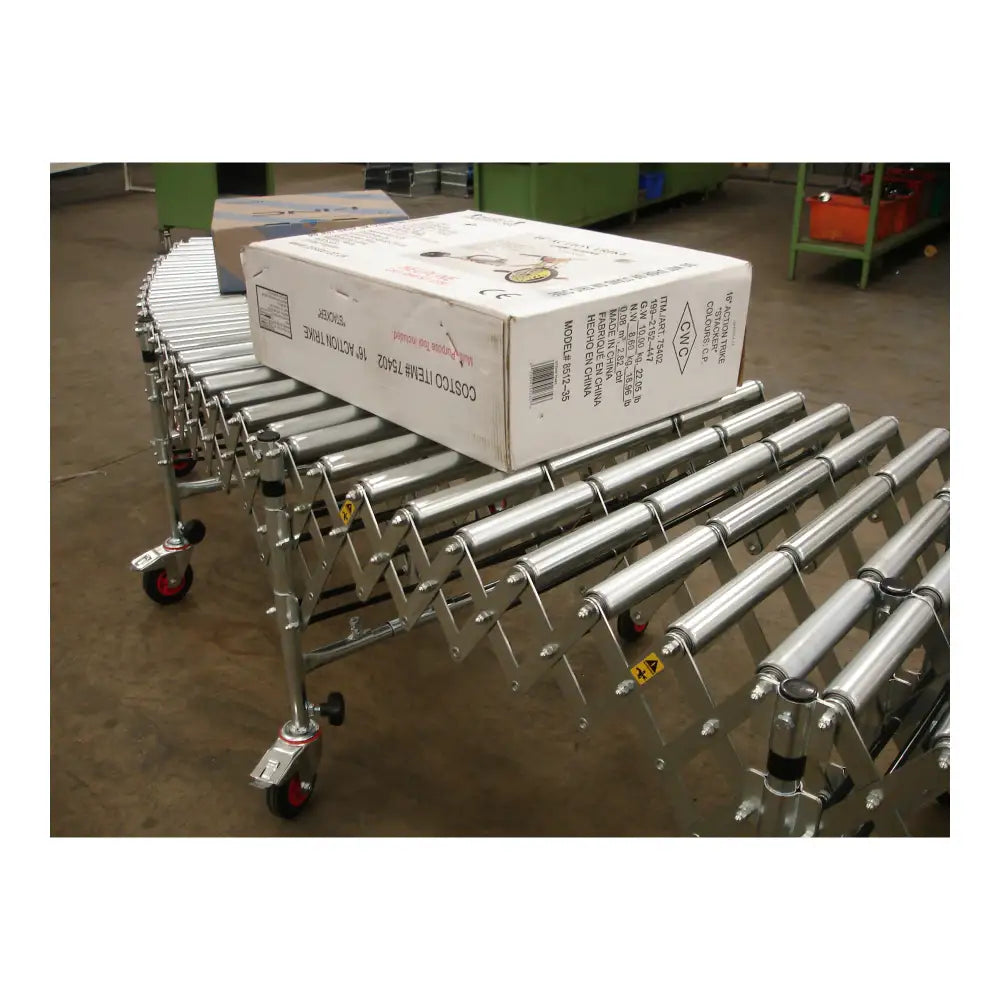

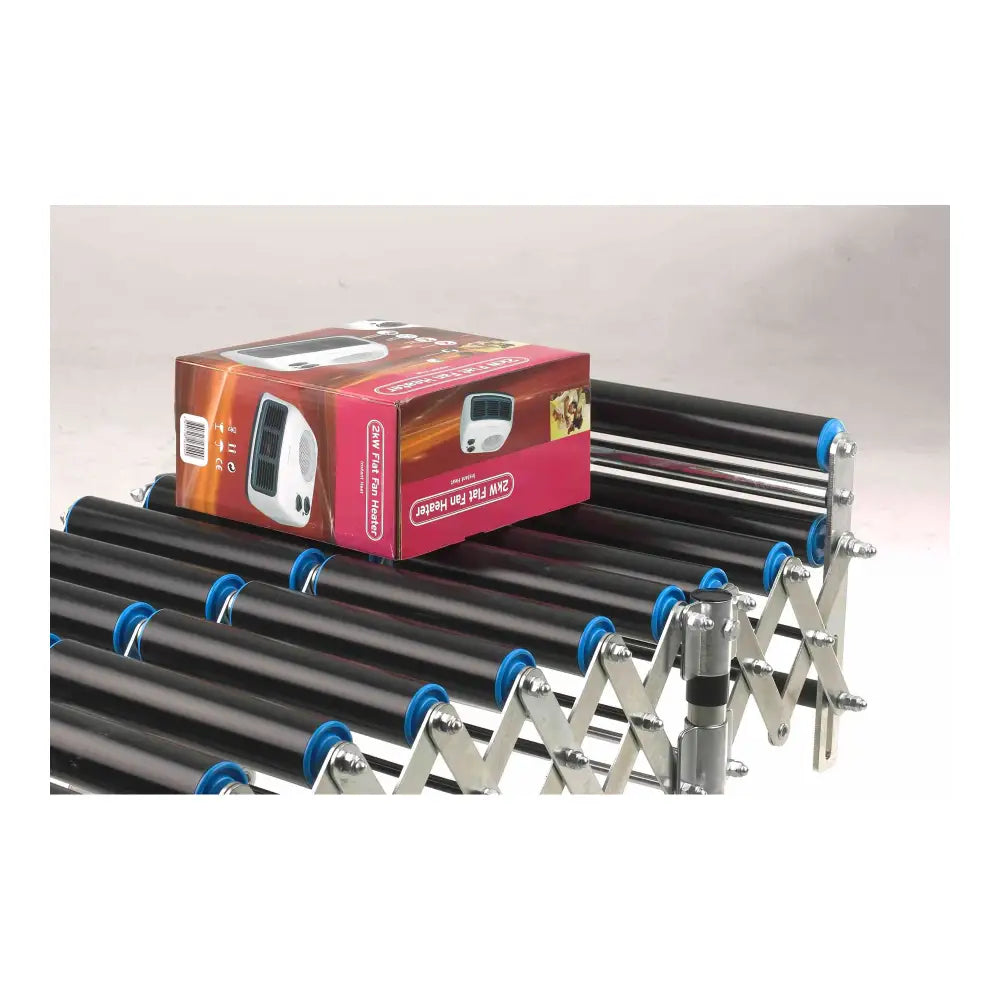

Heavy Duty PVC Roller extending flexible conveyor
Roller conveyor used for conveying cartons from work stations or production lines to case taping machines or packing stations. Roller models are extremely versatile due to their expanding concertina arrangement, suitable for conveying a wider range of loads and close up to less than one half of their open length. 12 Axle Heavy Duty Model.
- Can be flexed to convey cartons to and from workstations, case tapers etc.
- Conveyor width 400mm
- Closed length 1.980mtr
- Maximum extended length 4.5mtr
- Heavy duty diagonal knee bracers with 12 axles between stands
- and 100mm swivel braked castors are upgraded to 125mm diameter.
- Adjustable height
- 50mm PVC rollers on 125mm pitch
- Also available with bright zinc plated rollers (ideal for use with food products - ask for details.
- Price includes delivery
Ideal for use with our Case Taping Machines
This product is available in a wide range of sizes. Widths from 300mm - 1.2m and lengths from 1.5m - 9.5m. Please contact us for pricing on different sizes 01246 448999.
