Description

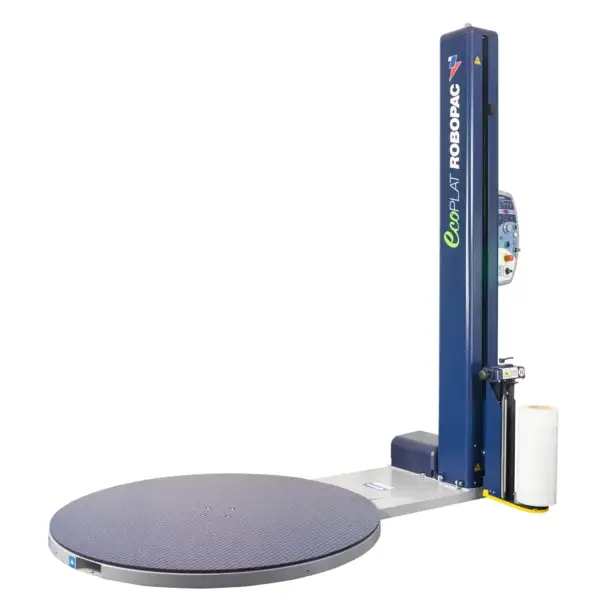

Ecoplat FRD Entry Level Turntable Pallet Wrapping Machine
The Robopac Ecoplat Plus FRD serves as an ideal entry-level pallet wrapping turntable machine, offering a seamless introduction to automated pallet stretch wrapping for medium to high usage. This machine has the addition of a more advanced LED display control panel, it has Clear Icons to make it easy to programme and offers more functions and flexibility than the Ecoplat Base.
It is recommended for businesses wrapping up to 30 pallets daily but can handle up to 150 pallets. The machine features pre-set programming and delivers consistent wrapping quality for packaging professionals. The control panel on the Ecoplat Plus FRD pallet wrapper enables straightforward setting of all cycle functions via electromechanical buttons.

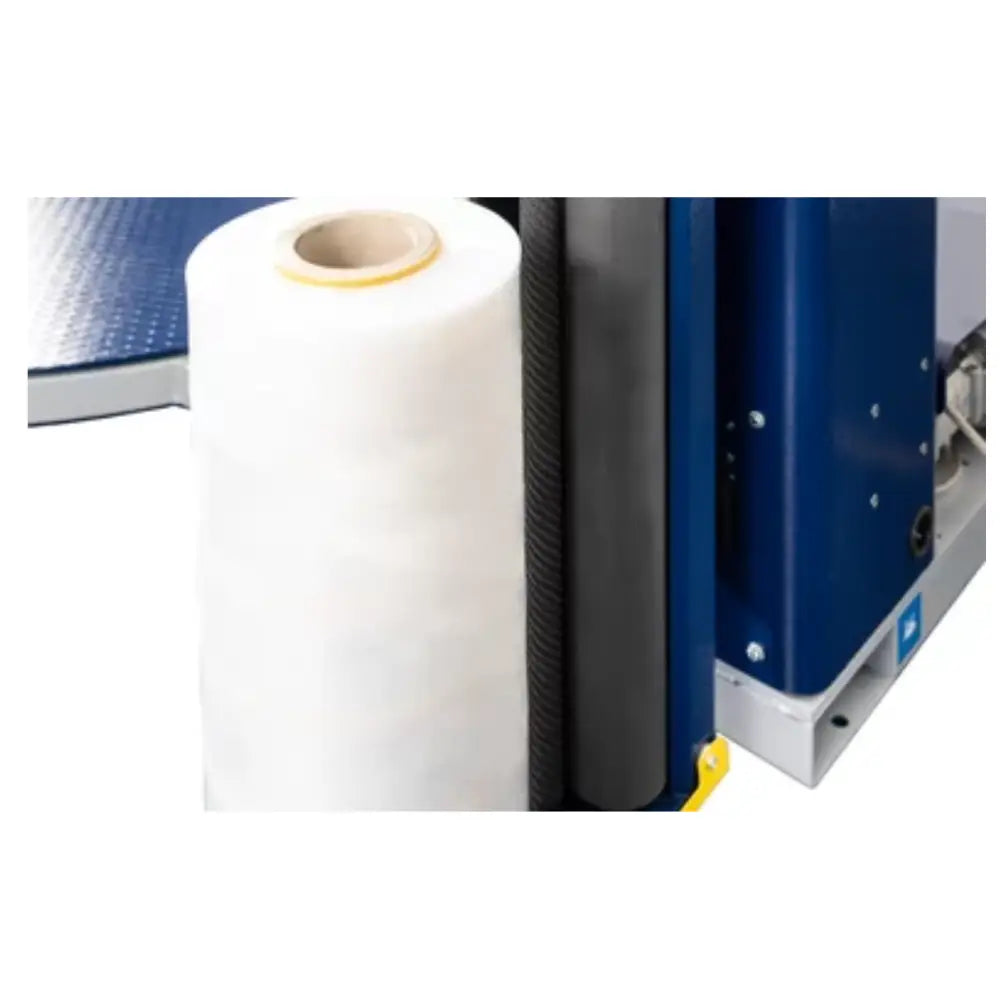

It is designed for use with standard 150% stretch machine film .
PRICE EXCLUDES DELIVERY, INSTALLATION & TRAINING. IF THIS SERVICE IS REQUIRED PLEASE ALLOW 2-3 WORKING WEEKS FOR DELIVERY.

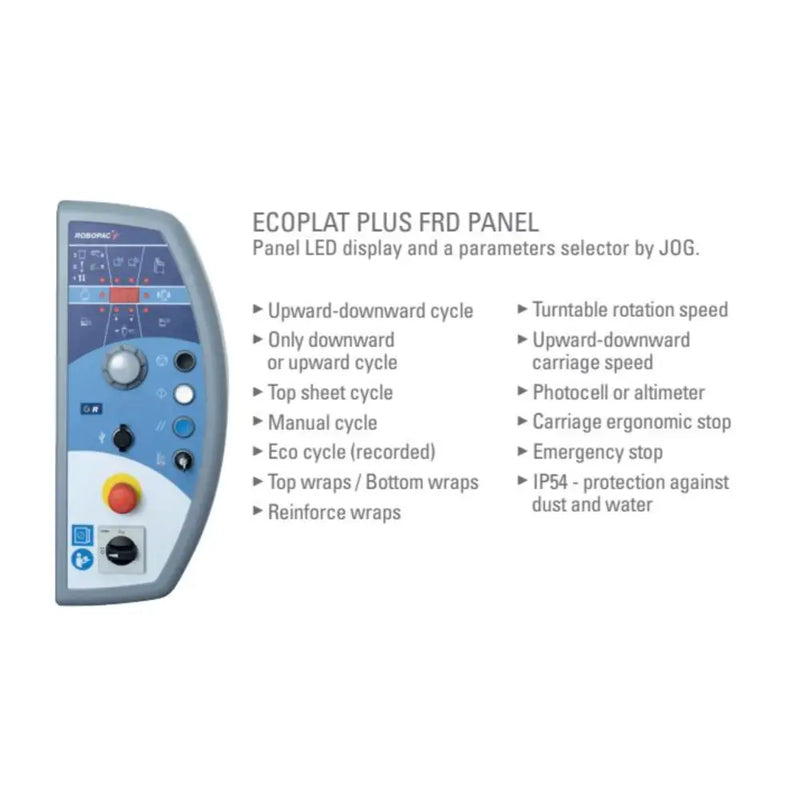

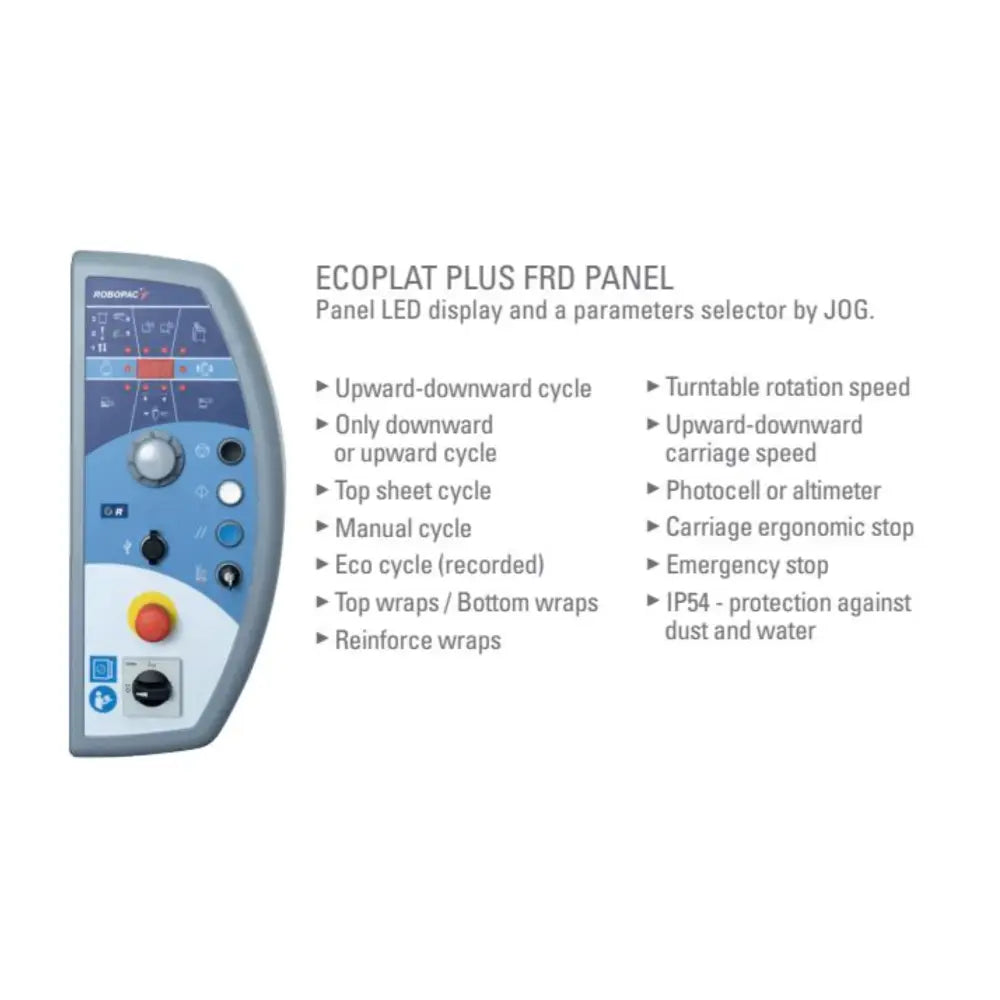

Panel with electromechanical buttons.
- Upward-downward cycle
- Only downward or upward cycle
- Top sheet cycle
- Manual cycle
- Eco cycle (recorded)
- Top wraps / Bottom wraps
- Reinforcement wraps
- Turntable rotation speed
- Upward-downward carriage speed
- Photocell or altimeter
- Carriage ergonomic stop
- Emergency stop
- IP54 - protection against dust and water
Specification
- Max load weight 2000kg per pallet
- Maximum wrapping height: 2200mm
- Turntable diameter: 1650mm
- Turntable speed: 4÷10rpm
- Power Supply - 230-240V, 13A 50-60Hz Single Phase
- Weight - 315kg
- Loading Ramp - Optional (Additional Purchase)
Loading Ramp: To utilise this machine with a pallet pump truck, a ramp must be acquired to attach to the turntable. These can be found on our website HERE
