Masterplat PGS Power Pre-Stretch Turntable Pallet Wrapping Machine

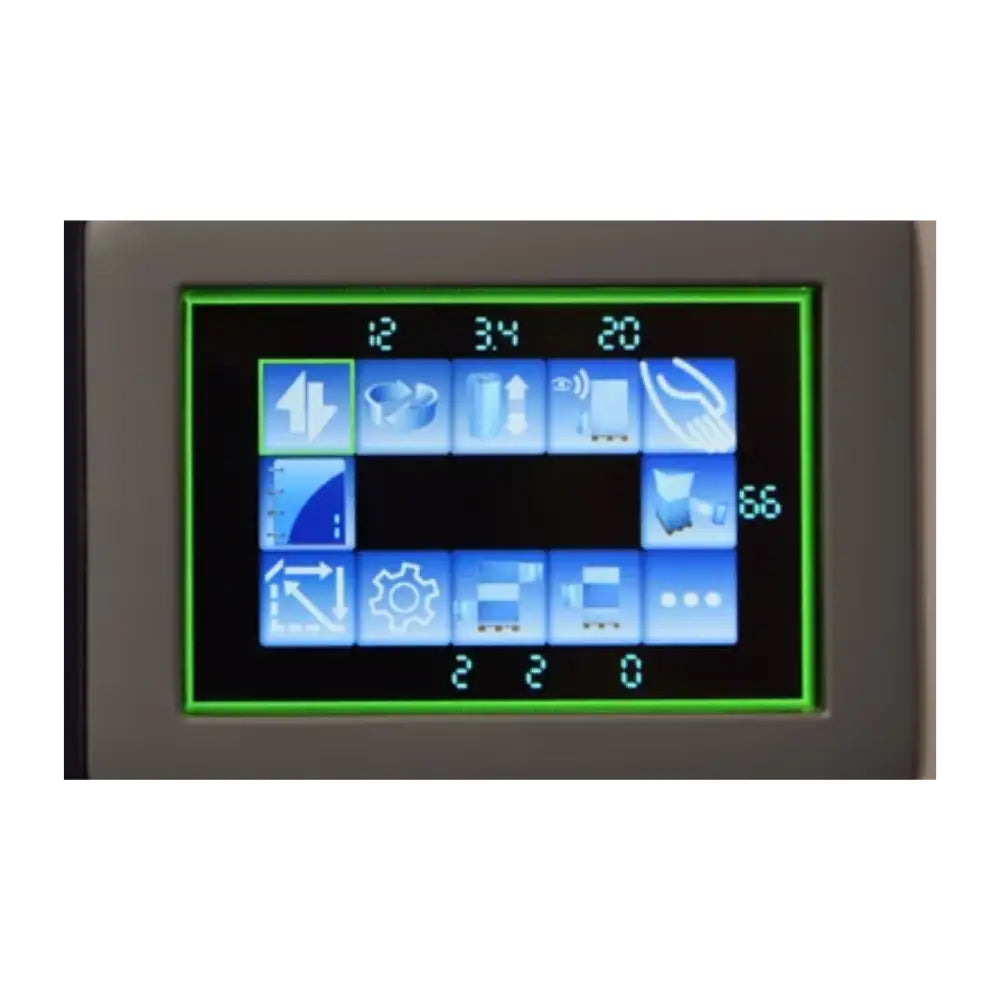

The Robopac Masterplat Plus PGS is an outstanding machine for medium to large-sized businesses that wrap over 30 pallets per day. It is engineered for use with power-pre 250% stretch film, which not only saves significant time but also reduces the amount of stretch film used, thereby minimizing consumable costs. The colour graphic display control panel is user-friendly, offering 'easy mode' and 'advanced mode' options, with program selection made through a straightforward turn wheel.
It is designed for use with power-pre 250% stretched machine stretch film.
PRICE EXCLUDES DELIVERY, INSTALLATION & TRAINING. PLEASE ALLOW 2-3 WORKING WEEKS FOR DELIVERY
Adjustable parameters and features include:
- Indexed turntable, stops at same position every time.
- Variable turntable rotation speed.
- Full wrapping cycle.
- Eco Cycle.
- Manual cycle.
- Emergency stop.
- IP54 - protection against water and dust.
- New HMI - more intuitive and with more features.
- Reliability and Sturdiness - built following the strictest safety and quality protocols.
Easy maintenance - USB port to update and download the data and software from the machine easily and quickly. - Industry 4.0 - possibility of installing R-connect system.
- Forklift locations on the machine to enable it to be safely moved with a forklift.
Specifications:
- Max load weight 2000kg per pallet
- Maximum wrapping height: 2200mm
- Turntable diameter: 1650mm
- Max tower height 2560mm
- Carriage: PGS
- Adjustable tension
- Variable plate rotation speed: 4-12 rpm
- Variable carriage speed: 1.6-4 m/min
- Power Supply - 230-240V, 13A 50-60Hz Single Phase
- Weight - 315kg
- Loading Ramp - Optional (Additional Purchase)
Loading Ramp: To utilize this machine with a pallet pump truck, a ramp must be acquired to attach to the turntable. These can be found on our website HERE
