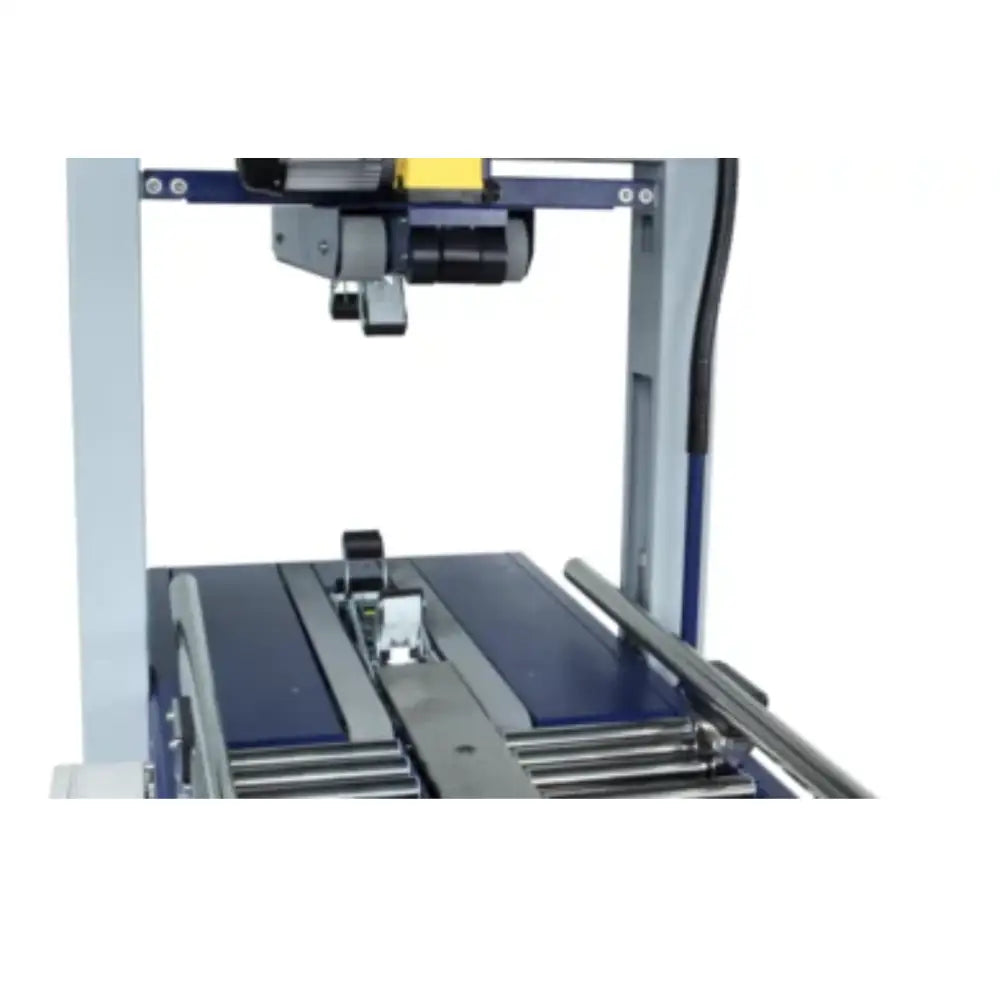

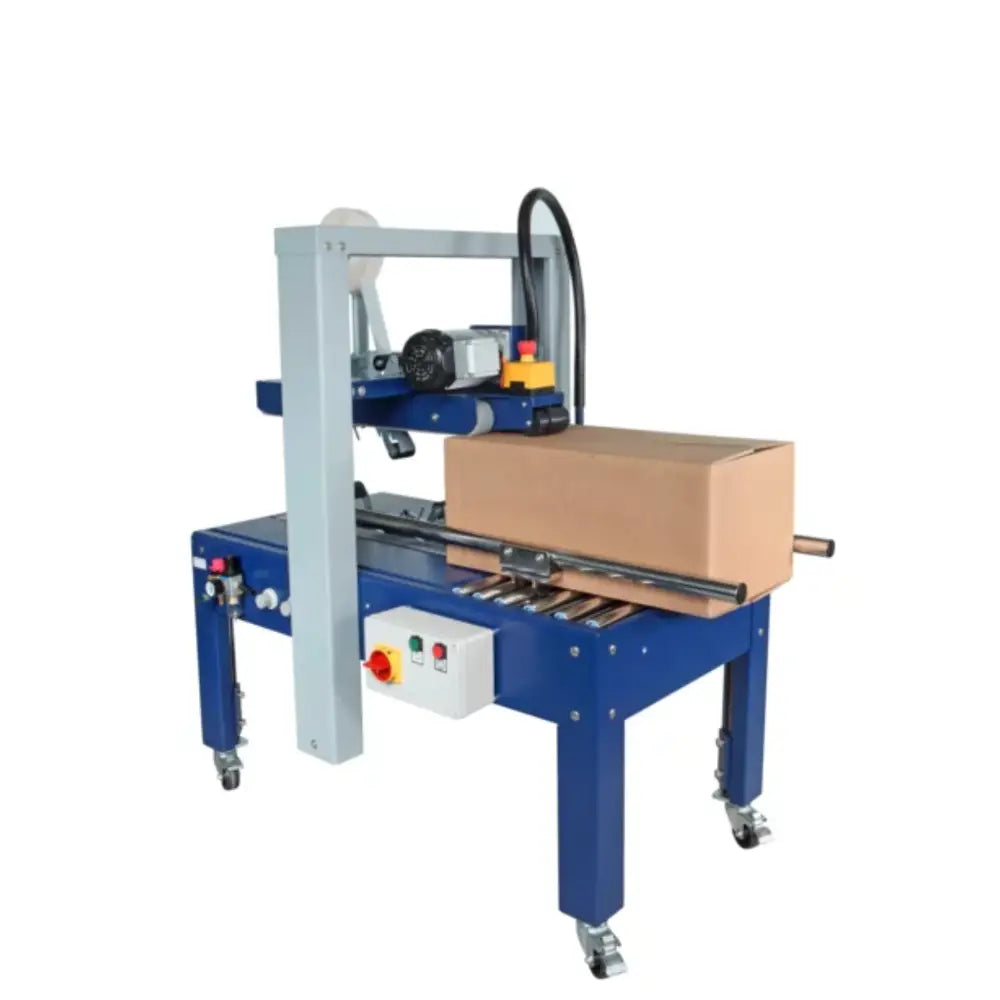

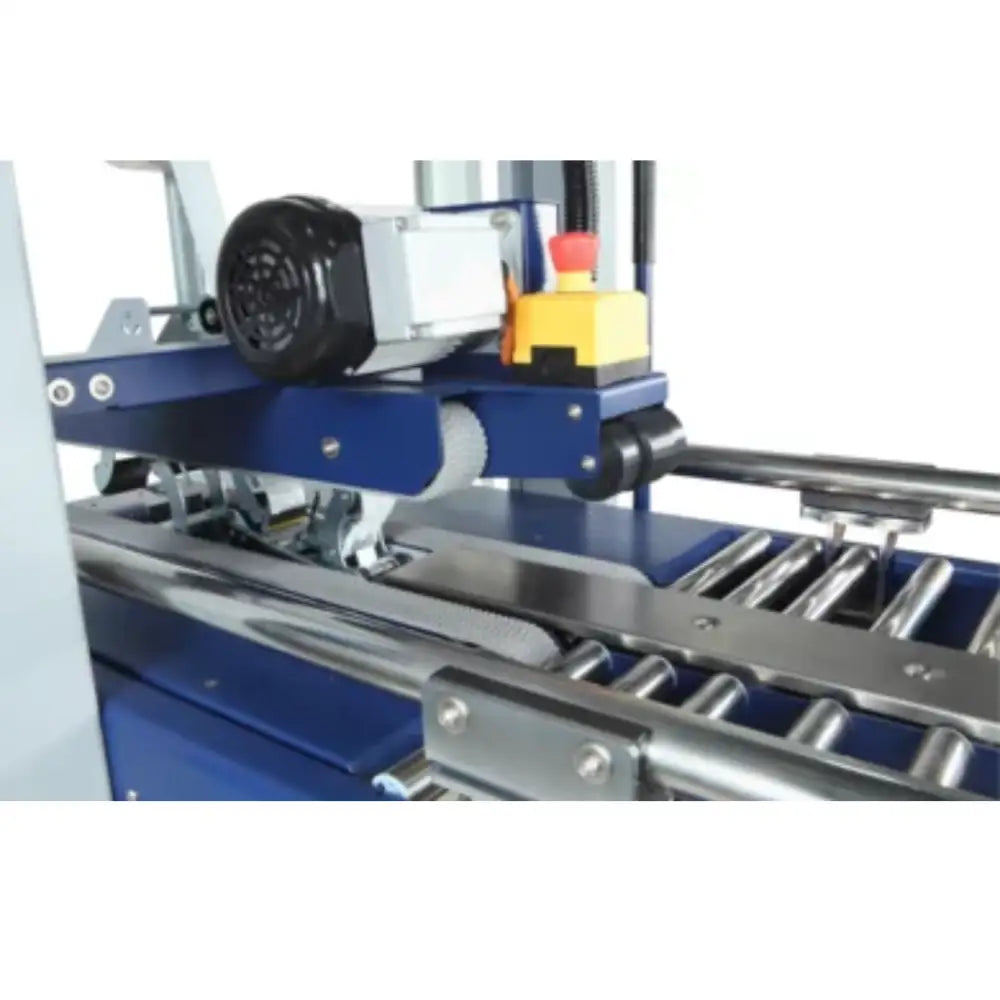

Robotape 50 TBDA Random Case Taping Machine Top/Bottom Belt Driven

Robopac 50TBDA Case Taping Machine for medium sized boxes of a  different size

Pneumatic semi-automatic tape machine provides secure sealing to the top and bottom of cartons, It has a self-sizing system that automatically adjusts to the box's size.  It is ideal for heavier boxes and e-commerce operations. This taping machine optimizes the product flow, thereby improving the efficiency and speed of your packaging line.. It takes standard 50mm tapes and offers optional taping heads for heavy-duty or 75mm tapes.  It also works with paper tape for more sustainable use.  The taping process is highly efficient and reliable as it uses the highest quality tape rollers.

LEADTIME - APPROX.  10 WORKING WEEKS FROM ORDER.

Infeed and outfeed conveyors not included

• User-friendly controls with easy to change tape system
• Motorised top and bottom belts for sealing random sized boxes
• Automatic adjustment of dimensions
• Ideal for bottles and heavier items

• High quality tape rollers

Specification

• Belt speed: 22 metres per minute
• Drive: top and bottom belts
• Carton capacity: length – 150mm – infinite
• Carton width: 135mm – 500mm
• Carton height: 110mm – 500mm
• Box weight - 1 - 50kg
• Tape width: 50mm – 75mm (75mm requires the 75mm taping heads)
• Conveyor rollers: steel
• Castors included
• Weight: 162Kg
• Power: 400v three phase
• Air consumption required - 158  NI/,min
