Description
Semi-Automatic Case Taping Machine, side belt driven for boxes of the same size

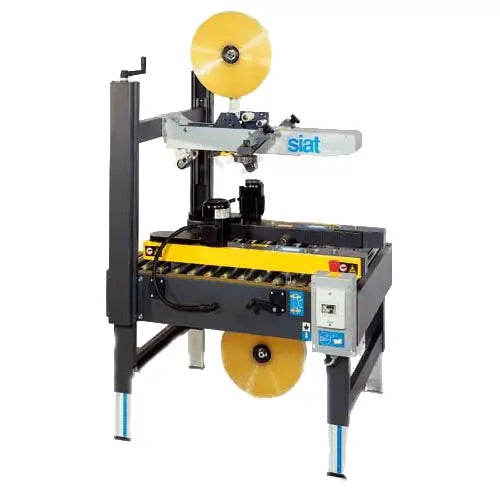

The SIAT S8-S8/4 is a robust, premium box sealing machine engineered to accommodate a wide range of box sizes, including very narrow boxes from 10 cm (4 inches) wide with the S8/4 model. Designed for durability and ease of operation, it features dual 50 mm side drive belts, quick height adjustment for fast setup, and an industry-leading SIAT taping system that ensures consistent tape application.

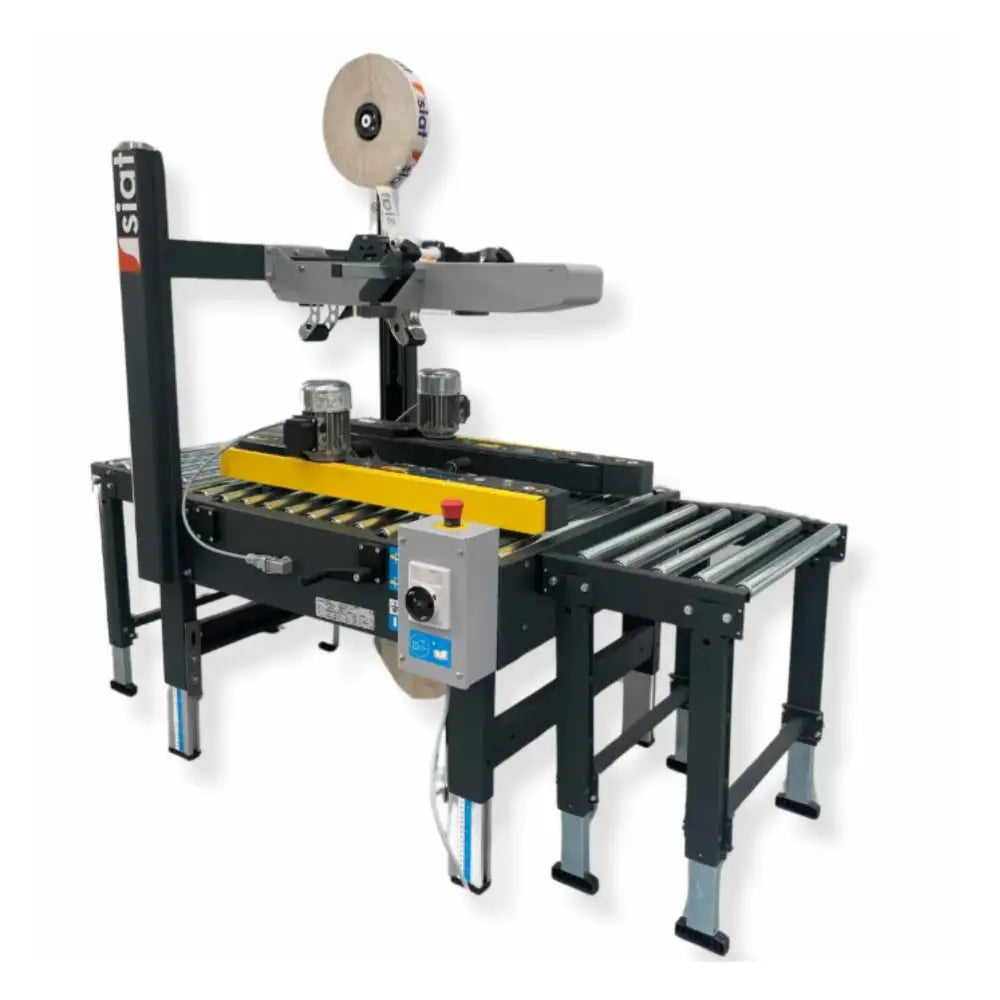

Machine does not include castors/brackets/conveyors as shown.
- Seals both upper & lower flaps of cardboard cases or cartons

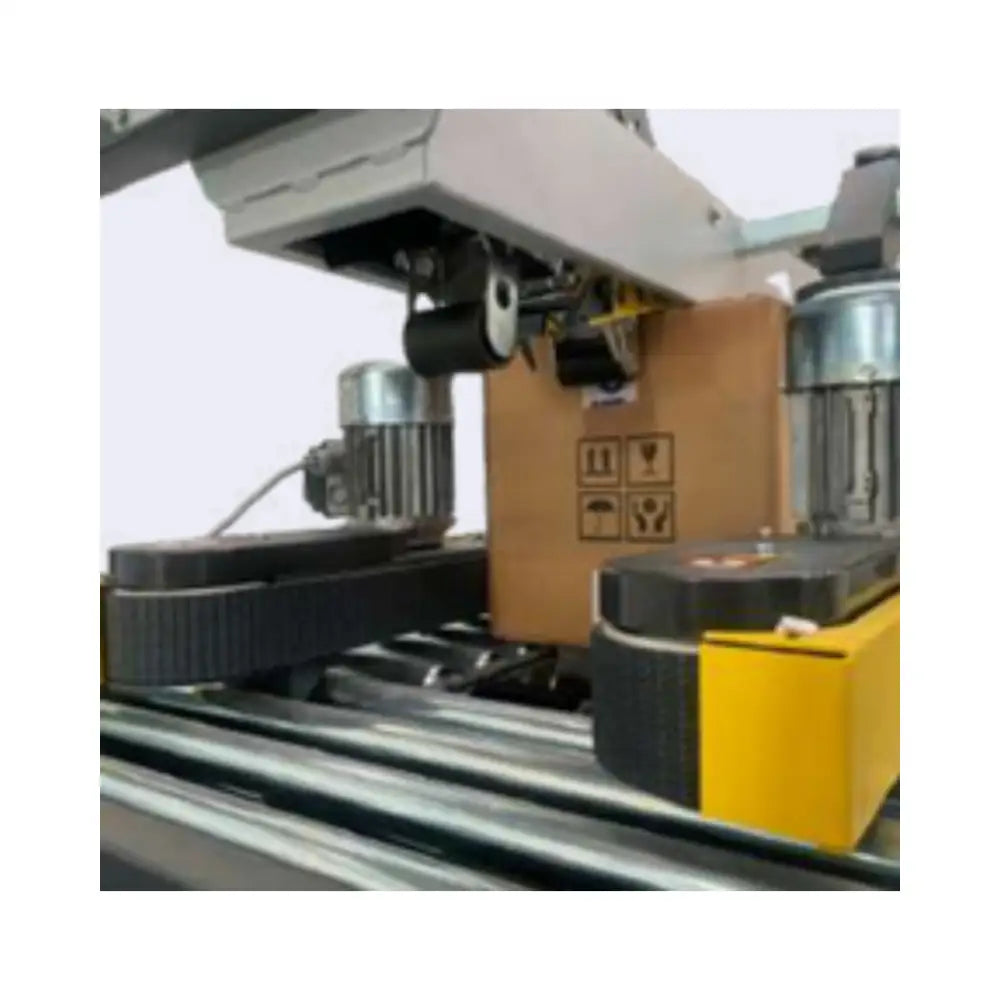

- Side belts are both driven
- Standard 240v power supply
- No air consumption required
- Minimum box size - (L) 150mm x (W) 105mm x (H) 100mm
- Maximum box size- (L) No Limit x (W) 500mm x (H) 500mm
- Maximum production capacity - up to 1200 boxes per hour
- Adjustable working height 500mm to 750mm.
- Tape Head - 50mm standard (75mm available on special request)
- Tape width - 50mm standard
- Infeed and outfeed conveyors available
- CE Compliant - Engineered and produced in Italy according to EU safety standards
- Made in Italy
