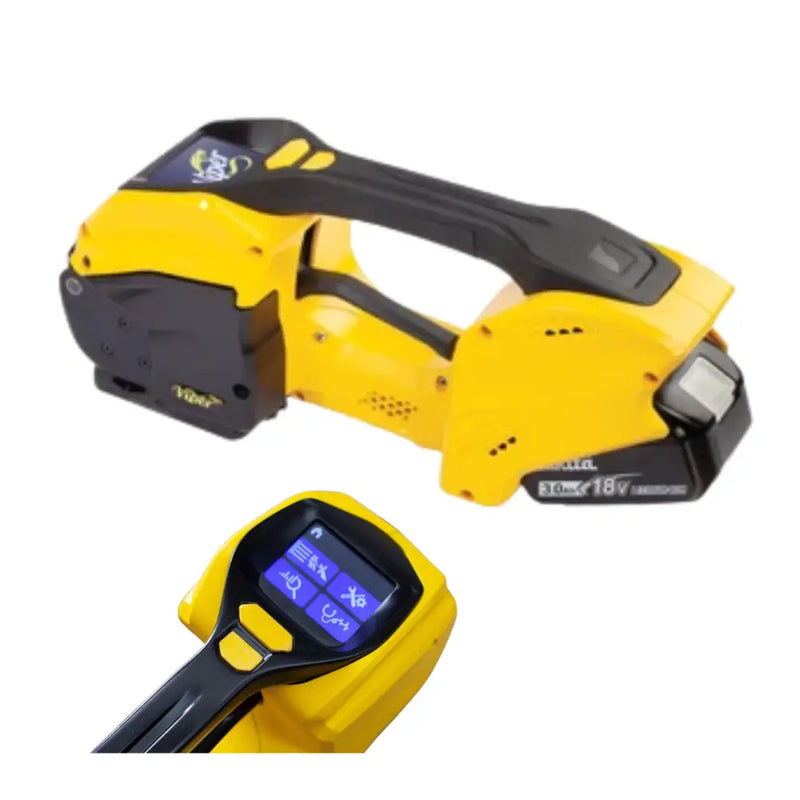

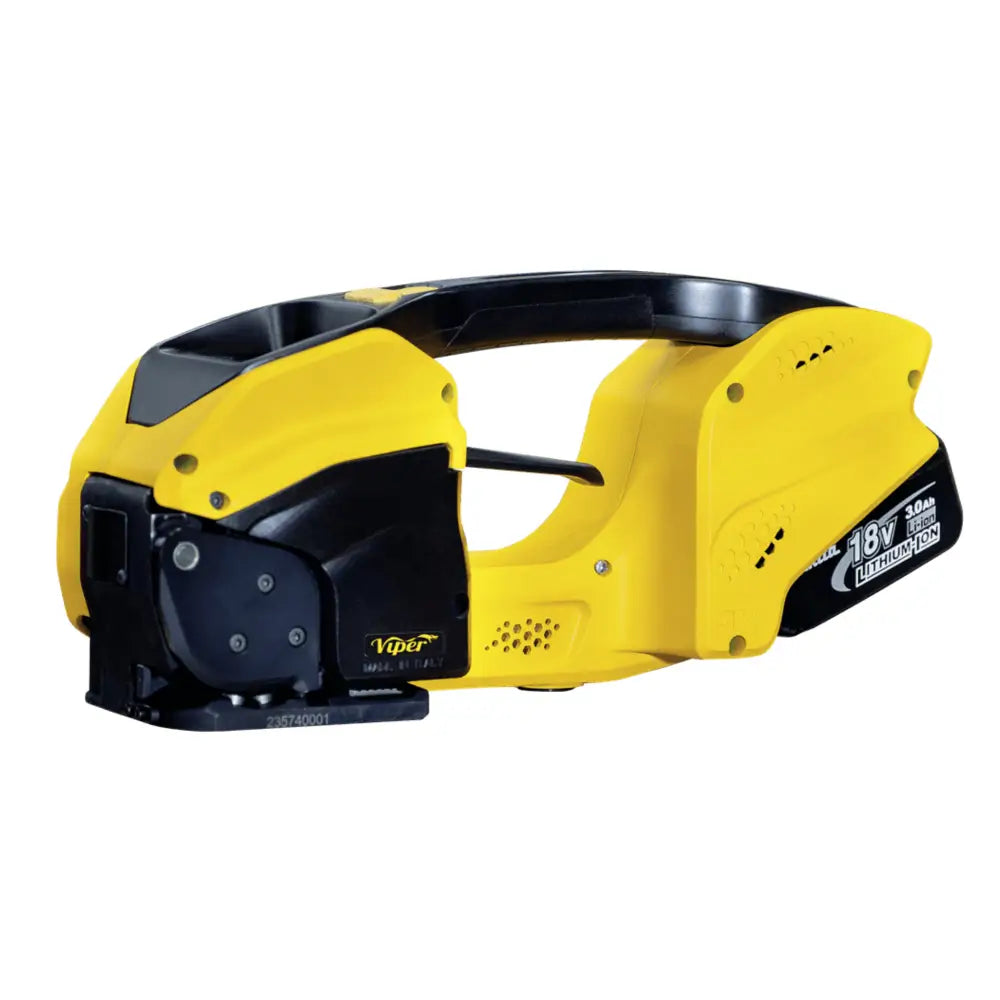

SIAT Viper Friction Weld Strapping Tool with Touchscreen Controls

Siat VIPER Battery Powered Tool for PP & PET Plastic Strapping

The Viper represents SIAT’s latest battery-powered strapping tool, designed specifically for PP and PET straps in sizes of 9, 12, and 16 mm. It incorporates a capacitive touchscreen with real-time feedback, allowing for intuitive programming and adjustments that mimic the ease of smartphone use.

Investing in the Viper ensures access to a state-of-the-art, high-efficiency, and intelligent tool crafted to provide superior usability and performance in every strapping task.

The Viper is unique in the market as the only tool featuring a calibration function for cooling time, guaranteeing a flawless weld with every use..

Smartphone-like Operation: The Viper boasts an intuitive touchscreen interface, allowing users to program and adjust settings with ease. The interface displays real-time data and simplifies value adjustments through easy-to-understand icons.

• Lightweight and perfectly balanced for improved handling
• Ergonomic shape for maximum comfort during operation
• Reinforced covers designed to resist impact and protect the tool in demanding industrial environments
• Registered and original Italian design ensuring style and quality

 SIMPLE INTERFACE

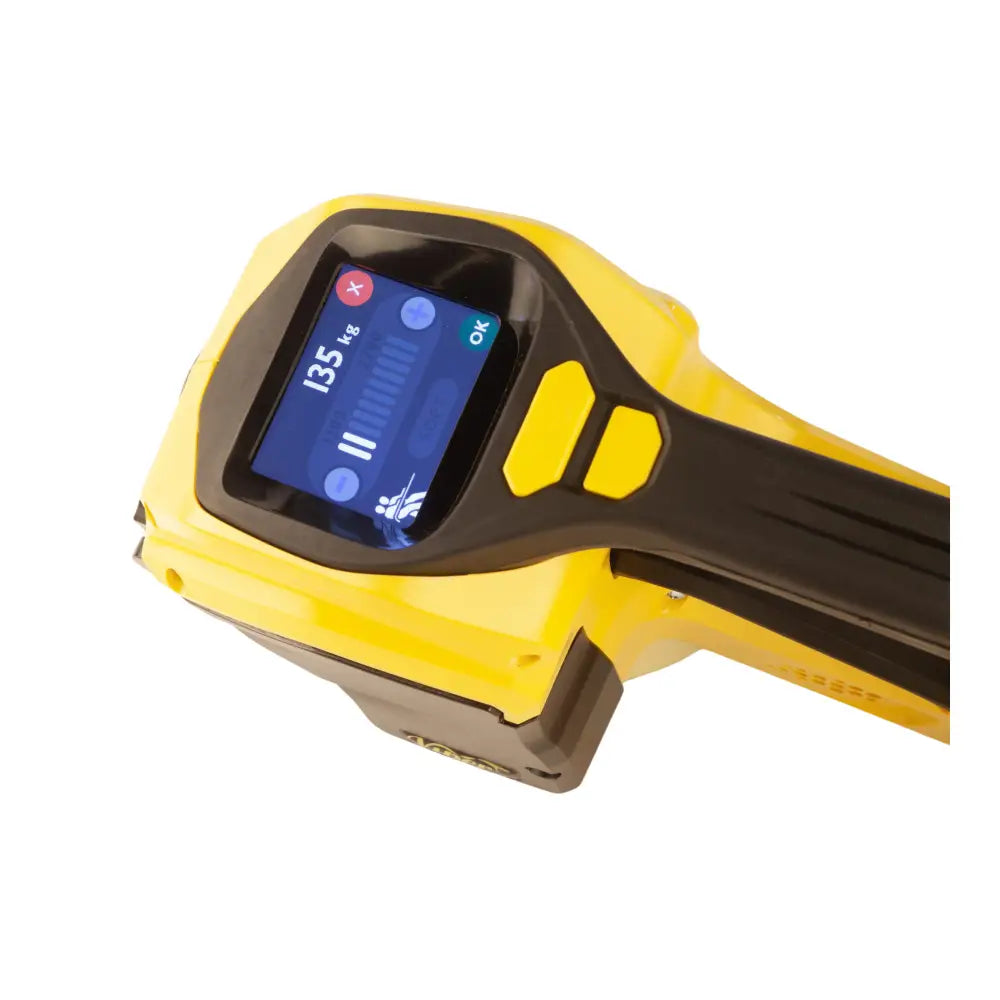

• Full TFT colour display with capacitive touchscreen that works with just a light touch of your finger
• User-friendly graphical interface with intuitive icons
• Front-facing display for maximum usability and clear visualization of selected values such as force and speed
• Tool status display and error reporting for fast diagnostics
• Lockable display to prevent accidental setting changes

IINCREASED VERSITILITY

• Compatible with 9, 12, and 16 mm PP/PET straps (smooth or embossed) in the same tool
• Stores up to 8 custom settings for fast access and consistent use
• Programmable tension force and sealing time
• Adjustable cooling time for perfect welds
• Variable force and speed settings for a wide range of applications
• “Soft” function available for delicate packages
• IoT-enabled for advanced connectivity and data tracking
• Easy maintenance and quick functional testing

 TECHNICAL SPECIFICATIONS

• Strap Type: PP / PET
• widths: 9 mm, 12 mm, 16 mm (3/8”, 1/2”, 5/8”)
• Thickness: 0.50 mm – 1.10 mm (0.020” – 0.045”)
• Easy maintenance and quick functional testing
• Battery Type:  Makita Li-Ion/ Power 18V 3.0Ah
• Charging Voltage: 230v
• Operating Modes:  Automatic, Semi-Automatic, Manual
• Sealing Efficiency: 75% - 85% (depending on strap type and thickness)

• Maximum Tensioning Speed  200mm/sec
