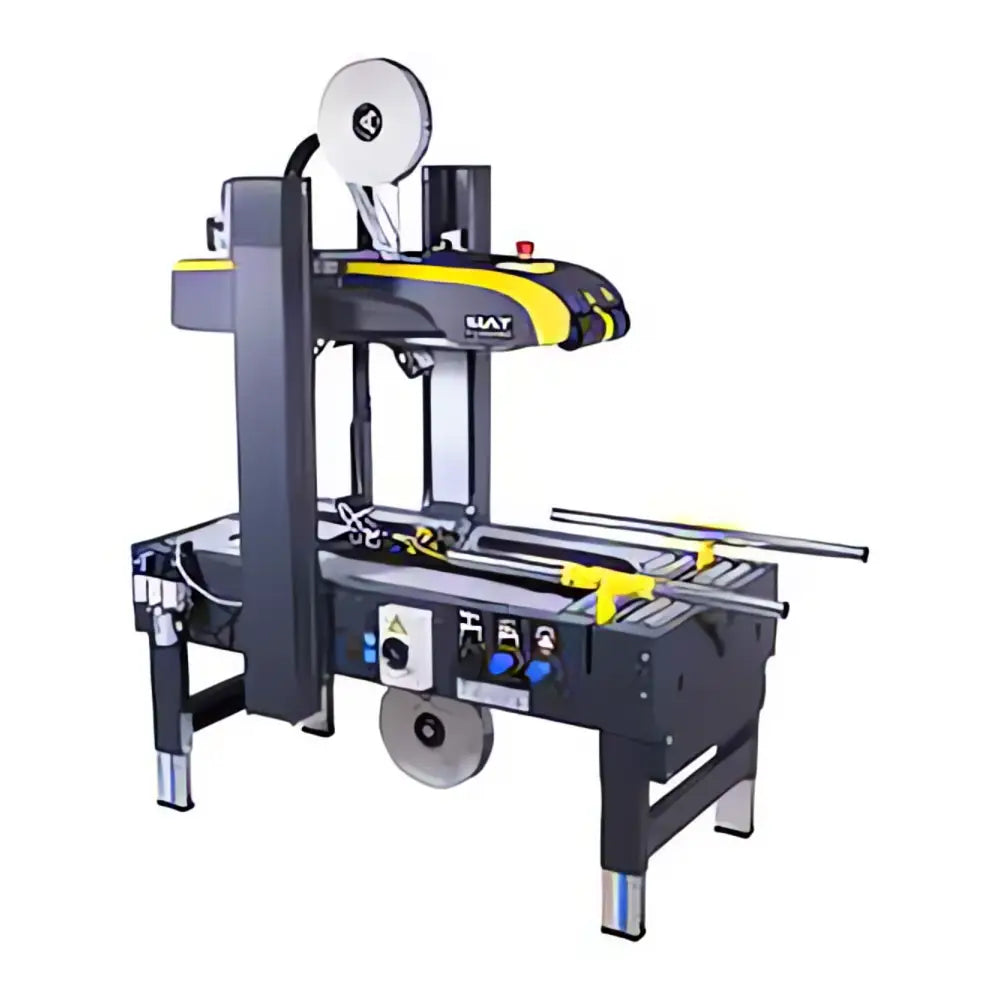

Siat SR20 Semi-Automatic Random Case Sealing Machine, Top & Bottom Belt Driven


Sale price£5,395.00
INC.VAT £6,474.00

Multibuy Savings

Discounts apply across the full product range

2-3 products receive 3% discount

4-5 products receive 5% discount

6+ products receive 7% discount

Discount applied at checkout


Pneumatic Semi-automatic Case Taping Machine with automatic adjustments for different sized cases

With the SIAT SR20 Semi-automatic Random case taping machine, the height and the width of the box is detected as it is fed into the machine, the machine then automatically adjusts to the required size. It is top and bottom belt driven so the tape is then applied to either the top of the case, or to the top and bottom as required. Capable of producing up to 900 sealed boxes an hour.  ideal for e-commerce and logistics operations.

  • Seals both upper & lower flaps of cardboard cases or cartons
  • Top and bottom belts are driven
  • Available in single and three phase power supply
  • Air consumption cycle (NL/Cycle) - 9
  • 4 belt box control for perfect boxes every time
  • SIEMENS electrics and FESTO pneumatic components
  • Motorization 2x 130 Watt
  • Min to Max box weight - 0.5kg all the way to 32kg
  • Minimum box dimensions - (L) 150mm x (W) 140mm x (H) 100mm
  • Maximum box dimensions -  (L) No Limit x (W) 500mm x (H) 500mm
  • Maximum production capacity - up to 900 bph
  • Tape Head - 50mm standard (75mm available on special request)
  • Tape width - 50mm standard
  • Infeed and outfeed conveyors available
  • CE Compliant - Engineered and produced in Italy according to EU safety standards
  • Made in Italy
